F4P-SM-6B

More Views

F4P-SM-6B

Product Code: F4P-SM-6B

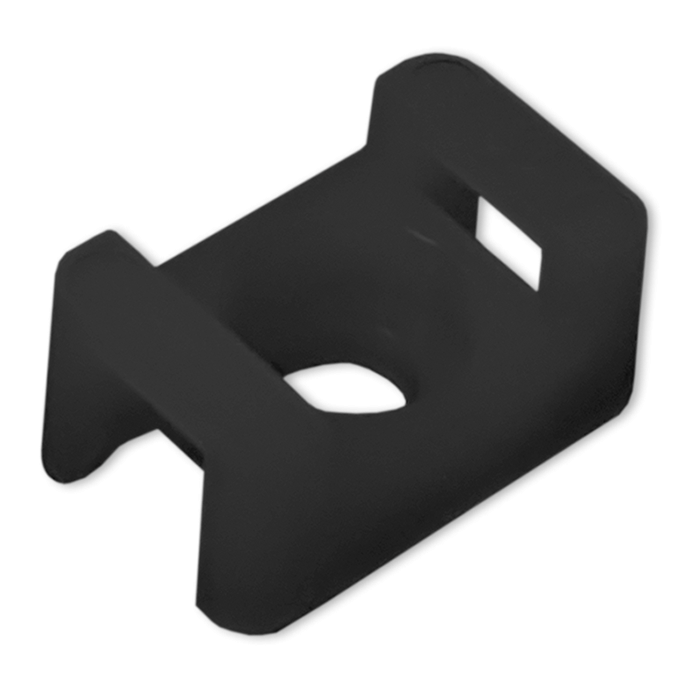

F4P Screw Mounts offer secure support by utilizing a deep cradle design that provides maximum support for larger bundles and tubing. Deep recessed screw hole allows cable ties to pass over screw head.


Product Features

F4P Screw Mounts offer secure support by utilizing a deep cradle design that provides maximum support for larger bundles and tubing. Deep recessed screw hole allows cable ties to pass over screw head.

Specifications

Primary Fastener Type: Screw Mount
MATERIAL USED: UV Black Nylon 6/6
Country of Origin: USA
Colour: Black
Screw Size: #6
Mechanical Strength: 50 lb/222 n
Type: Type 21, AH-2
Certification: cULus
Length (inch/mm): .60"/15.24mm
Height (inch/mm) : .27"/ 6.85mm
Width (inch/mm): .38"/9.65mm
Slot Width: .20"/5.08mm
Slot Height: .06"/1.65mm
Min Operating Temperature (°F/°C) : - 40 degrees F/ - 40 degrees C
Max Operating Temperature (°F/°C): 185 degrees F/ 85 degrees C
UL Reference #: E168851
