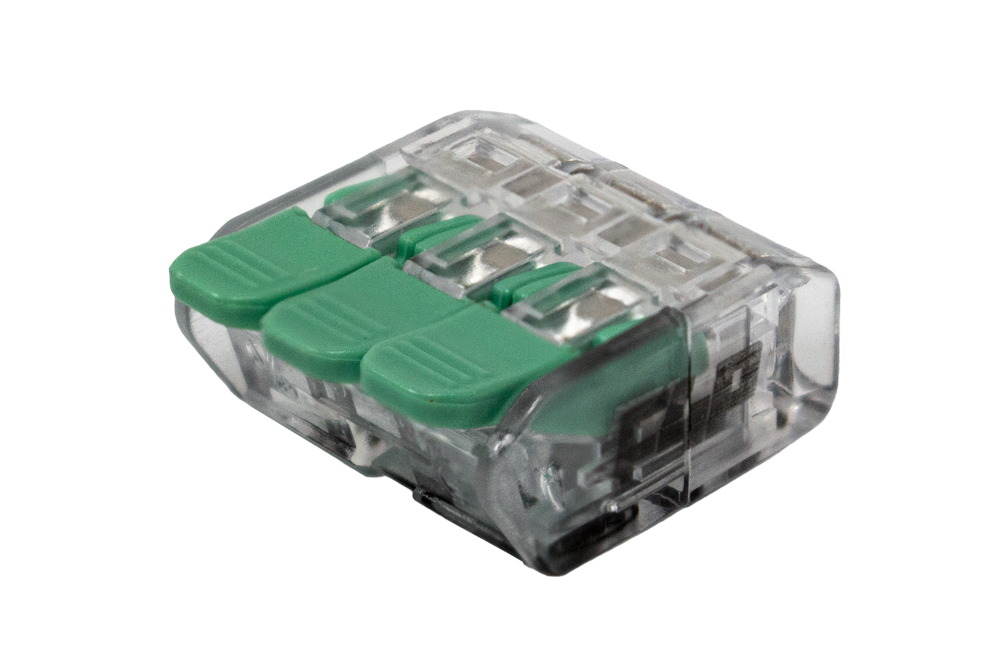

THREE POLE 24-12 - JAR
Product Code: F4P PILC-3-J
These reusable push-in lever connectors are perfect for keeping your wiring job safe and secure. They are suitable for solid and stranded wire and can be used in residential and industrial wiring.
Product Features
- Ease of installation– pull the lever up, insert a conductor and push the lever back down
- Available as 2, 3 and 5 wire connectors
- Easily terminate conductors from 24 to 12 AWG
- Compatible with solid, stranded, and fine stranded conductor
- Strip length guide printed onto push-in connector
- 600 Volts rated
- 105°C Max operating temperature
- cULus listed according to UL486C
- **FOR USE WITH COPPER CONDUCTORS ONLY**
Specifications
| Wire Range: | 24 - 12 AWG |
|---|---|
| No of Poles: | 3 Poles |
| Box Qty: | 125pcs / Jar |
| Approvals/ Certification: | cULus 486C listed |
