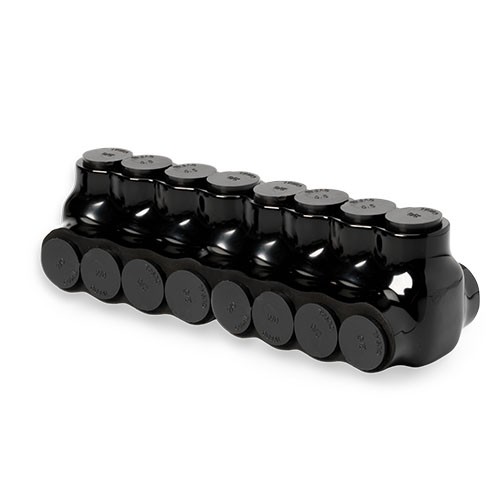

F4P UV Black Insulated Multi-Tap Lug - 250 MCM - 8 Port - Two Way
Product Code: F4P IL250-8
The UV insulated multi-tap encapsulated cable blocks feature a black PVC insulation allowing to quickly splice wires in a safe and secure insulated housing. A wide range of sizes and configurations are available for near limitless applications. All models are UL listed and meet or exceed ANSI C119.4 specifications.
Product Features
- Dual rated for aluminum and copper conductors
- UV-black insulated
- Anti-oxidation compound prefilled inside channels
- No taping required
- Multiple outlets for a wide range of cables
Specifications
| Aluminum and Copper Rated: | Yes |
|---|---|
| Wire Range: | 250 - 6 |
| Length: | 7 45/64" |
| Screw Size: | 5/16 Hex |
| Number of Outlets: | 8 |
| Configuration: | Two Way (T) |
